Performance Overview

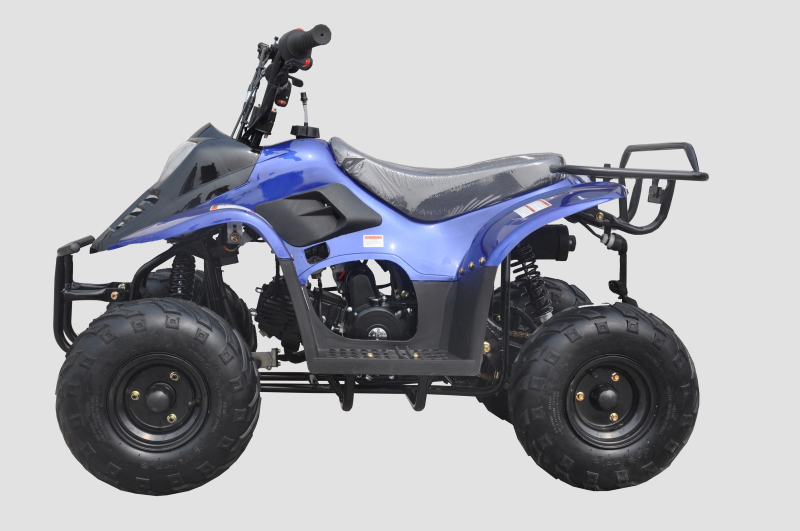

CRT110-2

Our products have passed the ISO9001 certification, and achieved EPA certificate. Products sold the United States, Japan, Canada, Dubai, more than 20 countries and regions. Its excellent quality and service to Chi Rui special won high praise.

The company has introduced world-class equipment and advanced technology. There are three modern production lines and a group of skilled workers and professional quality management team. We are committed to develop more advanced and more popular electric, steam moving recreational vehicle. All this makes Chi Rui special established a "leader" position in this field.

Overview of models

Technical Parameters

  • Engine
  • Type110cc/125cc,Air cooled,4-stroke,1-cylinder
  • Bore x Stroke52.4mmX49.5mm
  • Compression Ratio9.1:1
  • CarburetorPZ20
  • IgnitionCDI
  • Starting TimeElectric start
  • TransmissionR-N-F
  • Drive TrainChain Drive
  • Max. Torque7.0N.m/7500r/min
  • Max. Power4.8kw/7500r/min
  • Size
  • L x W x H1250mmX730mmX860mm
  • Seat Height540mm
  • Wheelbase840mm
  • Ground Clearance75mm
  • Battery12V/5Ah
  • Fuel Capacity2L
  • Dry Weight76KG
  • Max. Load65KG
  • Package Size1150mmX680mmX650mm
  • Loading Quantity64pcs/40GP;136pcs/40HQ
  • Frame
  • Suspension/FrontIndependent double swing arm
  • Suspension/RearSingle swing arm
  • Brakes/FrontDrum
  • Brakes/RearVentilated Hydraulic disc
  • Tires/Front14.5x 7-6 radial
  • Tires/Rear14.5x 7-6radial
  • Key Features
  • Max. Speed45km/h
  • Fuel Consumption2.5L/100km
  • Starting Time≤15s
  • Brake distance30km/h≤5.9m

Color

Optional parameters
Kill switch, remote control, speed limiter, 7-inch tires, rear-load shelves
